Symptom: Your vCenter appliance was deployed using “Tiny” resource sizing of 10 GB RAM and 2 vCPU.
Symptom: Your vCenter is version 6.7
Symptom: When you open your vCenter Appliance Management website at :5480, you see an alert in the Memory area.
Symptom: You may see occasional alarms stating “Memory Exhaustion on vCenter”
Symptom: You may see this in your event log: “event.vsphere.online.health.alarm.event.fullFormat (vsphere.online.health.alarm.event)”
Symptom: You see constant alarms in vSphere Web Client stating “vSphere Health detected new issues in your environment” referencing your vCenter server.
Root cause for memory error with Tiny deployment:
The memory issue may be a bug specific to the 6.7.0 Update 2a release of vCenter 6.7 (6.7.0-13643870) April 2019, which is the first place I’ve seen it.
In general, the memory warning can be ignored as long as your vCenter is working properly. However, it is very annoying.
Root cause for constant vSphere health alarm (not memory)
VMware added new functionality in vCenter 6.7 update 2 to perform preventative health checks using the Customer Experience Improvement Program.
Almost everyone who upgrades to 6.7 will get constant warnings and alerts saying “vSphere health detected new issues in your environment” because of these new health checks.
Honestly, I recommend just ignoring this alert. I think the ultimate fix will be a patch from VMware.
If you assign 12 GB of RAM to your vCenter, the alert should go away.
Once you make the change, your vCenter appliance dashboard will go green for memory.
The steps to assign more RAM are as follows.
Easy mode: If you have purchased the right VMware licenses, you can simply edit settings on your vCenter appliance VM and assign it more RAM. If you don’t know if you have the licenses, try it anyways. Worst that happens is you will see an error in the task area.
How to assign more RAM to vCenter appliance if you don’t have the hot-pluggable virtual hardware license.
Connect to the vSphere website for the host that is running vCenter
Connect to the management website for your vCenter appliance ( https://vcenter:5480)
In the management website for vCenter, click Actions > Shutdown.
Monitor the vSphere website on your host until you see vCenter powered off.
Right-click vCenter and select Edit Settings.
Modify the Memory to 12288 MB (or 12 GB) and click OK.
Thanks for reading this article! I hope it helps you! If you have tips or feedback, please comment or send me an email so that others can benefit.
I am a consultant in the Maryland/DC area in the USA. My specialties are Windows migrations (to 2016 and to Office 365 / Azure), VMware migrations, Netapp and SAN, and high availability / disaster recovery planning. If you would like help with your complex project, training, or would like a architectural review to improve your availability, please reach out! More information and contact can be found on the About page. – Amira Armond
When attempt to add a new vSphere host to vCenter, an error appears after entering the host credentials: “A general runtime error occurred”
You clicked YES on the certificate prompt.
You have a cluster with EVC enabled, and you are attempting to add the host to that cluster
You are using vCenter 6.0 , 6.5, or 6.7
How to add your new host to vCenter 6.0 , 6.5, or 6.7:
Instead of right-clicking your Cluster object and add host, you should right-click your Datacenter object (the item that is one level higher in your menu tree) and add host.
Right-click your Datacenter object (icon looks like two buildings)
Add Host
Enter the host name (fully qualified DNS name), or the IP address).
Click Next
Enter the credentials to the host (normally root + the password you set when you installed ESXi)
Click Next
Certificate prompt appears asking whether you want to replace the certificate for the host. Click Yes.
At this point, the wizard should proceed to the next step (Host Summary).
Click Next
VM location will display. If you have any VMs on the new host, you can select where they will be logically grouped.
Click Next.
Ready to complete displays.
Click Finish.
Root cause for “general runtime error” when adding host:
Your host has hardware incompatibilities with the EVC level selected in your cluster. Most likely, you will need to reduce the CPU generation to an older model to account for the age of your new host.
You can prove this theory by trying to move your new host to the cluster. It will probably give you an error like this:
If you want to add the host to your EVC-enabled cluster, you will need to research CPU generation levels for your server hardware, to find the common denominator.
Since you already have hosts in the cluster, you will want to create a new cluster with a compatible EVC level, and move your hosts into it one by one. Alternately, you can downgrade your current cluster by moving your hosts out, then back in. Both methods involve downtime for your VMs.
Move each of your hosts out of the cluster and to the Datacenter level
Right-click the cluster and Edit Settings, then select the “VMware EVC” tab
Enable EVC, and select the lowest (oldest) CPU generation for all of your hosts.
One by one, move your hosts into the cluster. If your host has VMs, you will need to put it into maintenance mode first (powering off the VMs during the move).
Thanks for reading this article! I hope it helps you! If you have tips or feedback, please comment or send me an email so that others can benefit.
I am a consultant in the Maryland/DC area in the USA. My specialties are Windows migrations (to 2016 and to Office 365 / Azure), VMware migrations, Netapp and SAN, and high availability / disaster recovery planning. If you would like help with your complex project, training, or would like a architectural review to improve your availability, please reach out! More information and contact can be found on the About page. – Amira Armond
Tips, tricks, and missing steps for the VMWare upgrade
Having done several small / medium business upgrades from vCenter and ESXi 5.5 to 6.0 and 6.5 and 6.7, I wanted to share some best practices and lessons learned with the IT community.
About 2-4 hours during the actual upgrade process. Figure one hour to deploy the appliance (no risk, original vCenter is unchanged), then another hour and a half to replace your existing appliance (your original vCenter is shut down). VMWare is very good about this process and will perform many system checks before shutting down your original vCenter. If something goes wrong at this stage, remember you can shut down (power off) the new vCenter and then start your old vCenter and it should recover.
Don’t forget the preliminary research, system checks, and preparation is another 4 hours for a small or medium business (this includes research for vSphere upgrades).
1-2 hours of the preparation is getting the images downloaded, either to your burned DVD or directly from the VMWare website.
——————————–
What is the risk of downtime while upgrading vCenter?
Good news: For small and medium businesses, there is almost no chance of customer impact while upgrading vCenter. Just don’t plan to do other management tasks at the same time. Remember that the hosts will keep running the VMs, the storage, and the virtual networking unchanged even if they can’t reach vCenter. DRS, HA and vMotion will not be available, so you won’t have normal redundancy.
As long as you complete your upgrade in a reasonable amount of time (one evening), you should be fine. What are the odds a host crashes in that 2-4 hour period? Generally extremely low (less than 0.1%) unless you have more than 5 hosts.
If you have 100+ hosts, then your odds of a server randomly crashing during the upgrade gets closer to 5%. But in that case, you should have a team of experts on the job, so you shouldn’t need much help from this lowly blogger <grin>.
——————————–
Can I upgrade vCenter and vSphere remotely?
You can perform this entire process (vCenter and ESX host upgrades) 100% remotely. Make sure you have a plan for what to do if a host doesn’t come back after rebooting. Ideally, you have an Integrated Lights-Out (iLO) module on your servers, which will allow you to restart them or power on/off remotely.
——————————–
Research before migrating or upgrading vCenter
Make sure you have deep-dived into the existing vCenter appliance and each host before starting.
Make sure to get the following configurations:
Existing vCenter IP , verify root username and password (see next topic)
Network basics (internal domain name, subnet mask, gateway, two DNS servers)
Time provider (NTP). Make sure this matches the NTP source your hosts are using! This is a good time to standardize it across your environment.
A ‘free’ IP address on the same subnet as your existing vCenter server. Will be used for a few minutes during the upgrade.
Configure your DNS servers to have a fully-qualified name for vCenter (the old vCenter IP and your new vCenter’s name). For example: vcenter01.company.com . Make sure you can resolve it before you start the upgrade. The vCenter install (particularly new installs) will bomb out if you don’t have good DNS.
——————————–
When you upgrade to vCenter or VMWare 6x, your vSphere Client (the program) will stop working! There is no client download on the website! How can you connect?
History: vCenter and vSphere 6x are designed to be managed with your web browser, using flash. VMware did this because there are all sorts of really niche configuration options that almost no-one uses. Adding the niche options to a website is easy. Adding them to the vSphere client is not. In version 5x, VMware put only basic functionality in the vSphere client and started offering niche options in the management website ( https://hostname:9443/vsphere-client ). In version 6x, VMware got sick of updating both the website and the vSphere client, so they stopped offering the vSphere client program. Nooo!
So now that you’ve upgraded to 6x, how can you connect and manage your virtual environment?
Using Chrome, IE, or Firefox, make sure you have Flash installed. https://get.adobe.com/flashplayer/ (Personally, I use Chrome, so the rest of the instructions will match Chrome.)
Navigate to https://vcenter_server_fqdn/vsphere-client
or for a host.. https://host_ip_address_or_fqdn/vsphere-client
Didn’t connect? Make sure you have a DNS entry for your vCenter server. This is a requirement for 6x
Now you probably have a warning “To view this page ensure that Adobe Flash Player version x or greater is installed”. But you already installed Flash Player! What the heck, Chrome?
You need to enable Flash each time you open the website for the day. Look for the lock icon in the address bar. Click on it and you will see Flash listed as blocked. Change it to Allow.
You will be prompted to Reload the page. Do so. Now flash will work and you can log on. Default username for vCenter “vSphere Web Client”: administrator@vsphere.local . Default username for vSphere (individual host ESXi servers): root. In both cases, you should have been prompted to set the password during install or upgrade.
——————————–
What about opening the Console to a virtual machine?
The console still works, but it now requires you to download a separate program Here is how to open console in 6.0 6.5 and 6.7.
You need to download the “VMware Remote Console” from the VMware website. It can be reached by … Downloads > vSphere > “Drivers & Tools” tab > VMware Remote Console.
Expand VMware Remote Console then click Go To Downloads.
You will see separate installers for Windows (all Windows variants), Macintosh, and Linux systems.
You will need to log on with a VMware account – if you don’t have one already, just go ahead and register for the free account.
Download and install the remote console on your computer. No reboot necessary.
Next time you select “Open Console” from the vSphere / vCenter web client, it should prompt you to open the link with a program. Select the VMRC (Vmware Remote Console).
Your VMRC console should now open and you can interact with the desktop.
When you click Open Console in 6x, a new webpage will open. It attempts to start the VMware Remote Console program and connect it to the guest VM. It is safe to close this window as soon as VMRC is started.
In 2017 and early 2018, the remote console was terrible with jumpy mouse, mouse disappearing, or offset mouse issues. The remote console has since been updated and works very well with all the operating systems I’ve tried (CentOS, Ubuntu, RedHat, Windows Server 2012, Server 2016, etc.
Installing VMware tools on the guest VM will normally help with sync issues.
Remember, if your mouse or keyboard get ‘stuck” in the console session (normally this only happens with pre-boot environments), just press left-CTRL and left-ALT at the same time.
——————————–
Problem: Can’t log onto the old 5.5 vCenter appliance
Symptom: You are pretty sure you know the root password, but it is not working on the web GUI. ( https://vCenterIP:5480 ) It says wrong password.
Symptom: The 5.5 vCenter appliance was built more than a year ago.
Fix: Connect to vCenter using SSH
(I recommend using the Putty SSH application which is available at this link). After connecting, when you enter ‘root’ and the correct password (default is ‘vmware’ but you’ve probably changed it), you will be told that the password is expired. Change the password using the SSH dialogue and now you can log on to the web GUI.
Cause: When you build a vCenter appliance (5.5, 6.0, or 6.5 or 6.7), by default, the system expires the root account after one year. I recommend un-checking this immediately whenever you build vCenter. If you want to change the root password periodically, you can still do it, but this way your department won’t get locked out.
——————————–
How to upgrade vCenter from 5.5 to 6.0 or 6.5
I personally recommend deploying 6.5 vCenter appliances (rather than deploying vCenter onto a Windows server).
The first step to upgrading is to perform a snapshot of your vCenter virtual machine. If you quiesce guest memory and something goes wrong during the upgrade, you can revert to the snapshot and everything will be working again within 5 minutes. This truly can be depended upon. Make a reminder to remove the snapshot after everything is stable.
Stage the upgrade
Note: You will need a valid VMware account. These steps are performed on a Windows 10 administrative workstation.
Adjust the version selection as necessary. Make sure that your vCenter is the same or HIGHER version as your ESXi servers.
Find the VMware vCenter Server Appliance , file type: iso ( about 3-4 GB) and download it.
Mount the ISO by right-click, Open With, Windows Explorer.
The files will appear in your DVD drive letter in Windows Explorer.
Navigate to \vcsa-ui-installer\win32\installer.exe and start it
vCenter appliance installer will display. Click Upgrade.
Here is a helpful video that describes pre-requisites and has step-by-step instructions to perform the upgrade. Text steps continue below.
vCenter Appliance Upgrade Stage 1
Upgrade Stage 1: Deploy Appliance – Introduction displays. Click Next
Upgrade Stage 1: Deploy Appliance – License agreement displays. If you want to proceed, click Accept and Next.
Upgrade Stage 1: Deploy Appliance – Source Appliance displays. Identify your Source Appliance (your existing vCenter 5.5 server) and provide credentials to access it. The default HTTPS port 443 is correct unless your environment has changed it (this is unlikely). The SSO User Name is normally administrator@vsphere.local , but this could be any full administrator account. Appliance (OS) root password refers to the root password for the vCenter 5.5 appliance. The root account can be tested by opening website to the vCenter 5.5 server https://vCenterIP:5480 or connect via SSH to the server.
You have a choice to specify either the ESXi host or vCenter server that manages the source appliance. It is recommended to specify the ESXi host, not the vCenter server, in that box. You can specify by IP or DNS (IP is less likely to have issues).
Click Next
Upgrade Stage 1: Deploy Appliance – .Specify deployment type displays – Embedded Platform Services Controller is appropriate for environments with 1-20 vSphere ESXi servers. If you aren’t sure, and you have less than 20 hosts, go for Embedded. If you have more than that, do some research to see what is best for your environment.
Upgrade Stage 1: Deploy Appliance – Appliance deployment target displays. Enter the ESXi host IP address or DNS that you want to host the new vCenter server. This can be the same ESXi host as is already hosting (make sure you have at least 10 GB of RAM available on it), or a different one. You will need to specify the username and password for the ESXi host.
Upgrade Stage 1: Deploy Appliance – Select folder displays. You can put the new vCenter server into a logical folder in your environment.
Upgrade Stage 1: Deploy Appliance – Select Compute Resource displays. You can choose which ESXi server runs the new vCenter server.
Upgrade Stage 1: Deploy Appliance – Set up target appliance VM displays. You can assign a name to the new vCenter server and give it a root password. Take note of this username and password – you will need it to manage the new vCenter server in the future.
Upgrade Stage 1: Deploy Appliance – Select deployment size displays. Look up the number of VMs you are running in the table, and pick your vCenter size based on it. Most environments qualify for Tiny, with less than 10 hosts.
Upgrade Stage 1: Deploy Appliance – Select datastore displays. Pick a datastore that has space to hold the server size you picked in the last step (Tiny = at least 250 GB free).
Upgrade Stage 1: Deploy Appliance – Configure Network Settings displays. Pick the VM network from the list that is the same as your old vCenter server and assign a temporary IP address on the same subnet as the old vCenter server. Your admin workstation needs to be able to communicate with this IP address as well.
Upgrade Stage 1: Deploy Appliance – Ready to complete stage 1 displays. Click Finish to run the deployment. It should complete Stage 1 in about 30 minutes or less.
Click Continue to proceed to Stage 2
Note: If you get an error communicating with the new vCenter at this point, your workstation is having trouble reaching the new server over the network. Did you assign the VM to the correct virtual switch? Did you give it an IP address that can route on that subnet?
Stage 2 of the vCenter Appliance Upgrade
Upgrade Stage 2: Introduction displays. Click Next
Upgrade Stage 2: Pre-upgrade check result displays. Warnings may display, depending on how your vCenter 5.5 server is configured. Recommended resolutions will also display. You can close the results after reading through them.
Upgrade Stage 2: Select upgrade data displays. I recommend copying everything from the source to the new vCenter, but if you are worried about space, just move the configuration. The events, tasks, and performance metrics are just for audit purposes.
Upgrade Stage 2: Configure CEIP displays. Depending on your company policy, join or do not join VMware’s Customer Experience Improvement Program. Most security conscious businesses or government agencies will not join the CEIP.
Upgrade Stage 2: Ready to complete displays. Click Finish when ready.
Data transfer and setup runs – this will take up to 45 minutes normally. When finished, you can click the Close button to finish the wizard.
Now you can log on to the new vCenter and check it out! https://vCenter_IPaddress/vsphere-client
——————————–
Can I install vCenter without DNS?
YES.
Check out this blog I wrote on how I installed vCenter 6.7 without DNS.
What if you have a Windows-based vCenter appliance?
Especially if you have update manager installed? This can get ugly. The basic steps are to install the vCenter update then install the Update Manager update. But, occasionally, vCenter will start acting really buggy and the client crashes. The good news is that you can roll back to the latest snapshot of vCenter (you did snapshot it with quiesce memory before the upgrade , right?) and it will go back to normal, the bad news is that you probably will need to rebuild vCenter or call VMware if you have a problem.
——————————–
Upgrade fails, need to rebuild vCenter
If your vCenter deployment is a typical medium or small business size, re-building your vCenter from scratch is actually faster than troubleshooting it, and doesn’t involve downtime. 90% of the configuration is held on the hosts, including datastores, virtual switches, and VMs. Make sure to spend 10 minutes looking at your old vCenter and screenshot the following:
License keys
User accounts and any custom permissions
Network settings for vCenter server
NTP settings
HA and DRS settings
CPU compatiblity settings
Keep-away and custom rules settings
If you use distributed switches or other advanced items like NSX and vSAN, rebuild at your own risk. Make sure you’ve really captured the configuration steps before you proceed.
Once you have the config’s captured, just turn off your old vCenter and build a new appliance from scratch. Set up your clusters and licensing, then add each host. Everything should come in correctly. Make sure to re-connect your backup programs to the new vCenter afterward.
Hint: You can install vCenter at 6x directly. No need to install a 5.5 version.
——————————–
How to set password policy so that you don’t get locked out
One of the first things you should do is change the password policy on your vCenter so that the accounts do not expire after 90 days. If you require a password to be complex (meaning 14+ characters long), you shouldn’t need to expire it for years and years.
To view or change the policy:
Log on to vCenter https://vCenterName.domain.etc/vsphere-client with administrator@vsphere.local
From the Home menu (icon looks like a house), select Administration
Under Single Sign On, select Configuration
Select Policies, then Password Policy, then click edit.
To set passwords to never expire, change the Maximum lifetime to 0.
I also recommend increasing the maximum length to 16, reducing the character requirements to 1 each, and limiting the identical adjacent characters to 3.
Click Save to save changes. These changes are global to all _______@vsphere.local accounts.
——————————–
vSphere ESXi upgrades from 5.5 to 6.5 or 6.7
Before you upgrade your ESX hosts, take a quick read through the rest of the topics below. There are lots of good tips and things to avoid.
——————————–
How long does it take to upgrade an ESXi host?
Do you have a shared SAN with 10gbps storage networking??? It is normally about 1.5 hours per host to perform the upgrade.
Are your VMs stored on the local hard drive of the ESXi hosts? It will take # minutes to vMotion the VMs to another host, + 1 hour. In many cases, it is more efficient to power off all VMs and perform the upgrade, then power the VMs back on, if you are using local storage.
You can save time by upgrading multiple hosts at once. This of course requires either powering off the guests or having enough extra resources to host them on the other servers.
Here is the time breakdown I use:
10 minutes: vMotion all guests off the host (this assumes you have fast shared storage). Or power-off the guests.
2 minutes: Put the host into maintenance mode
5 minutes: Enable SSH in services. SSH into the host and perform pre-upgrade scripts.
30 minutes: Download and install the latest image from VMware repository (requires Internet)
15 minutes: Reboot the host and wait for the server to load back into the ESXi operating system fully.
20 minutes: Apply SPECRTRE / MELTDOWN setting and reboot again ( only if you haven’t patched in a while).
5 minutes. Disable SSH in services. Take the host out of maintenance mode.
10 minutes: vMotion a non-critical guest to the host and test functionality.
10 minutes: Finish vMotioning other guests to the host (or power on the guests).
——————————–
What is the risk of downtime for ESXi upgrades?
The first question is: Are all your hosts running the same model of hardware?
If YES… then your risk is almost nil.
If NO… your hosts are running different hardware models (such as a Dell R710 and a HP DL360 gen8 and a HP DL360 gen9), then your risk of downtime or customer impact is pretty high. Read through the topic below, “CPU Generation Compatibility Levels” before you continue.
Next question: Do you have enough RAM and disk space to run all your VMs on (HOSTS – 1) ?
Figure this out ahead of time. Many companies have a few high-resource VMs such as database servers, which take up all or most of the resources on a host. Plan how you will migrate the VMs around so that all the VMs will fit onto your other servers. Note: You CAN overallocate RAM on ESXi hosts. They will page the less-used memory to disk. This normally won’t hurt performance much as long as you don’t over-allocate too many resources. Here is a (very) technical article about overallocating memory and CPU on VMware: https://labs.vmware.com/vmtj/memory-overcommitment-in-the-esx-server
If you properly migrate your VMs off each host, putting it into maintenance mode, before upgrade, you should be good. I still recommend doing this portion after-hours so that you minimize impact from vMotion and have the maximum amount of redundancy during the workday in case one of your hosts randomly fails.
——————————–
Problem: When I try to vMotion a guest VM, the option is grayed out?
Normally this issue is because the VM is changing in some way. For example, it might be migrating somewhere already, or you just modified the hardware settings and it is still saving, or you just powered it on, etc. Another possibility is that your Veeam is performing a backup of that VM.
If Veeam backup is occurring (you can tell by looking at the current Snapshots), wait for the Veeam backup to complete, or cancel it.
If a fast task like changing settings is running, wait for it to complete.
If you can’t find the cause, try shutting down the VM and powering it back on. Sometimes that clears the issue. Obviously not the ideal answer.
——————————–
How to upgrade ESXi hosts using command line remotely
For this procedure, you WILL need Internet access from the host. If you have a decent business ISP, it should take less than 20 minutes to download the update.
1. vMotion or power-off all VMs off the host. Note: you may need to disable automatic load balancing in your cluster if the VMs are automatically migrated back.
2. Put the host into Maintenance Mode
3. Start the SSH service on the host ( Configuration > Security Profile > Services > Edit )
4. SSH to the host ( I use the Putty program which is freely available on the internet)
5. Log on as root
6. Perform this command to enable downloads from the VMware Internet repository”
esxcli network firewall ruleset set -e true -r httpClient
7. Determine which version of ESXi you want to update to.
IMPORTANT: Never update your ESXi version higher than your vCenter version!! If you do, your vCenter will disconnect the hosts!!!
For example: When I check my vCenter version in the Appliance website ( https://vcenter.fqdn.com:5480 , update tab), I see my vCenter is version “6.5.0.23000 Build Number 10964411” with a Release date of November 29, 2018.
I look up the VMware patch tableand decide I want to download ESXi 6.5 EP 11 which was released November 9, 2018 and has a slightly lower build number than my vCenter server.
Version
Release Name
Release Date
Build Number
ESXi 6.5 EP 11
ESXi650-201811001
11/09/2018
10719125
Perform this command in SSH to see what versions of ESXi are available from the VMware Internet Repository:
Review the list for the version you want. Copy the package name to your clipboard. The package name will look like ESXi-6.#.#-########-standard
When I perform the query in SSH, I see packages that match the release name:
ESXi-6.5.0-20170304101-standard VMware, Inc. PartnerSupported ESXi-6.5.0-20171201001s-standard VMware, Inc. PartnerSupported ESXi-6.5.0-20170304101-no-tools VMware, Inc. PartnerSupported ESXi-6.5.0-20181101001s-standard VMware, Inc. PartnerSupported ESXi-6.5.0-20180604001-no-tools VMware, Inc. PartnerSupported ESXi-6.5.0-20180502001-no-tools VMware, Inc. PartnerSupported ESXi-6.5.0-20171204001-no-tools VMware, Inc. PartnerSupported ESXi-6.5.0-20170304001-standard VMware, Inc. PartnerSupported ESXi-6.5.0-20181104001-no-tools VMware, Inc. PartnerSupported ESXi-6.5.0-4564106-no-tools VMware, Inc. PartnerSupported ESXi-6.5.0-20181101001s-no-tools VMware, Inc. PartnerSupported ESXi-6.5.0-20181103001-no-tools VMware, Inc. PartnerSupported ESXi-6.5.0-20180501001s-standard VMware, Inc. PartnerSupported ESXi-6.5.0-20170304001-no-tools VMware, Inc. PartnerSupported
Since I want the full package including latest VMWare tools, I pick the package named “-standard”.
8. I then run the UPDATE command, adding the package name to it.
After about 5 minutes (depending on your internet connection), you should get a successful message.
Update Result Message: The update completed successfully, but the system needs to be rebooted for the changes to be effective. Reboot Required: true VIBs Installed: VMware_bootbank_esx-base_6.5.0-2.71.10868328,………,………,………,………,………,………,………,………,………
9. Type reboot in SSH to reboot your host.
10. Wait for the reboot to finish. Generally, I just wait for vCenter to show that the host is back online.
11. SSH back into the host, logging on as root. Note: If SSH doesn’t connect, you may need to re-start the SSH service in Security Profile.
12. Disable downloads from the VMware Internet repository by running this command:
esxcli network firewall ruleset set -e false -r httpClient
13. Take the host out of Maintenance Mode
14. vMotion or power-on a non-critical guest VM to this upgraded host.
15. Test functionality of the non-critical VM (especially check the ability to ping it, which is a good all-around test of host, network, and VM)
16. vMotion or power-on the other VMs to the upgraded host.
17. Stop the SSH service on the host (Configuration > Security Profile > Services > Edit )
18. Continue upgrading other hosts.
If you need more information, here is a longer guide for upgrading ESX 5.5 to 6.x using command line by Deflounder.
This is a big concern because if you don’t avoid it in advance, you will have to shut down some VMs in order to complete the ESXi hosts upgrade.
If you have more than one model of server, deep dive on this BEFORE you start upgrading ANY hosts.
Symptoms
You have older hosts mixed in with newer servers.
After upgrading a host to vSphere 6.0 or 6.5, you cannot vMotion your VMs to it. “The virtual machine requires hardware features that are unsupported or disabled on the target host. General incompatibilities. If possible, use a cluster with Enhanced vMotion Compatibility (EVC) enabed, see KB article 1003212.“
Root Cause
vCenter 5.5 seems to handle CPU compatibility without any configuration steps. Later versions need to be configured for this before you turn up hosts.
In vCenter 6.0 and 6.5 and 6.7 , you need to set up a Cluster object and put your hosts into it in order for Enhanced vMotion Compatibility to work across CPU generations. But you can’t do this while your host has any VMs running. If you upgrade then move your VMs onto the host without setting up the cluster object, you will have issues vMotioning the VMs to other hosts later.
Fix: Set up cluster in vCenter, configure CPU compatibility levels to the lowest common denominator, and add your newest host to it early.
After upgrading vCenter, but before upgrading hosts, create a cluster object (right-click the datacenter, New Cluster)
After naming the cluster, right-click it and select Settings.
Select the “VMware EVC” tab in settings. Enable it, and select the lowest (oldest) CPU generation for all of your hosts.
Starting with your newest hosts (the highest generation), move them into this cluster after upgrade but before migrating VMs back onto them.
For example, I will upgrade ESX05 first because it has the highest CPU generation.
(I have already upgraded vCenter to 6.5)
Create a cluster object and configure CPU compatibility at the LOWEST common level
vMotion all VMs off ESX05 to older hosts.
Put ESX05 into maintenance mode in vCenter
Install ESXi 6.5 on this host
Re-add ESX05 to vCenter if needed.
Move ESX05 into the compatibility cluster while it is in maintenance mode with no VMs.
Configure and thoroughly test ESX05 (see topic below).
Take ESX05 out of maintenance mode
vMotion some VMs onto ESX05, in preparation for upgrading ESX04 (the next lower generation server) next.
If you do this right, you should be able to avoid customer impacting downtime.
Problem: Did you miss the CPU compatibility fix and already vMotioned some VMs into an upgraded, newer host?
Sorry. You are stuck with a situation where you can’t get your last host(s) into the compatibility cluster because you have live VMs on it and you can’t vMotion the VMs to any other host. This is not an acceptable stopping point because you lose cluster benefits like DRS and also can’t vMotion for regular maintenance in the future. So bite the bullet and fix it now, rather than wait until you are forced to do it in the future.
If you get stuck in this compatibility hell, then the easiest solution is to shut down all the VMs on that host then move the host into the cluster. This normally results in a downtime of about 10-15 minutes, depending on how fast your VMs boot up.
Problem: Did you upgrade the host with vCenter on it, and now you can’t migrate without shutting down vCenter?
How to fix vCenter vMotion CPU compatibility issue:
Here is the situation. You are trying to vMotion your vCenter to another host, but you get an error about CPU compatibility. Errors like “The virtual machine requires hardware features that are unsupported or disabled on the target host” “If possible, use a cluster with Enhanced vMotion Compatibility (EVC) enabled; see KB article 1003212″ ” CPUID details” “incompatibility at level 0x1 register ‘ecx'”. “FMA3 is unsupported” “MOVBE is unsupported” “RDRAND is unsupported”
The normal fix is to power off the VM momentarily, vMotion it, then power it back on. During power-on, it will use the new host’s CPU capabilities.
But with vCenter, you can’t do this, because you are using vCenter to perform the vMotion, so powering it off means you can’t communicate with both hosts at once.
Shared storage fix:
If you have shared storage (both hosts can reach the same datastore), you can use VMWare’s instructions to fix the problem. Essentially, you make sure the vCenter server is on shared storage, then you connect to each host’s vSphere website directly. Power vCenter off and remove it from inventory (no delete!!!!) on the first host. Then Add vCenter to inventory on the second host and power it on.
No shared storage? Using local disk / datastore for each host?
This is how I’ve fixed it.
Using vCenter, with vCenter powered on, I right-click the existing vCenter server and Clone it to the second host’s datastore. Note: Name the clone something you are happy to use permanently)
Wait for the clone to finish, (the clone will be powered off).
Open the vCenter management website ( https://vcenterURL:5840 ) and log on to it
In another tab, open vSphere website to the second host (that has the clone) and log on to it.
Right-click the clone vCenter and Power On
Immediately Shut Down the original vCenter using the management website.
Wait for about 10 minutes, then attempt to connect to vCenter normally. You should be working from the clone now.
Once you feel comfortable, delete the old vCenter.
Something went wrong?? Rollback instructions:
If the clone vCenter doesn’t work, just shut it down using the second host’s vSphere website.
Connect to the first host’s vSphere website and power on the original vCenter.
You can avoid 99% of the risk by testing your upgraded host thoroughly before you put production VMs onto it.
I recommend the following tests (at minimum)
Make sure you’ve got your upgraded host configured, into vCenter, and into it’s destination cluster.
Using a test VM (build one up if you don’t have one ready), test connecting to each virtual switch and pinging to-and-from other servers across the network.
Storage vMotion the test VM to each major storage system you have.
vMotion (processing) the test VM between your upgraded host and other hosts. Test both directions.
Snapshot and delete snapshot on the test VM.
And before you close this project, make sure to re-connect your backup jobs and test them.
——————————–
Good luck in your upgrade process!
(shameless self promotion) By the way, I consult on VMware, Storage Area Networks (such as Netapp, Synology, FreeNAS), high availability designs, and migrations to the cloud. I offer 30 minutes of free technical advice on these topics: if we can solve your problems in that time, great! If the problem is too big, we can start working on a plan together. Please schedule using the button below! – Amira Armond, President, Kieri Solutions
You increased the size of a datastore in the past, but now when you open vCenter, you see the old (smaller) size displayed. There may be low disk space warnings.
Web client for vCenter 6.5 and vSphere 6.5 and probably vCenter 6.0 and vSphere 6.0
If you refresh the datastore information, the correct size displays and the warnings go away temporarily.
The problem re-occurs.
Root Cause
According to the VMWare forums, this is caused by having different ESXi versions on the hosts in the datacenter. Such as one host has Update 1 and another host has Update 3. The recommended fix is to simply update all ESXi to the same version.
What happens if you can’t?
In my case, I needed to use a custom HP image for some servers, and I’m not going to take down the other hosts to install that custom image. So I kept trying things and found a good workaround.
Workaround
For EACH host in the datacenter that had a connection to the faulty storage, I performed these steps:
Had to troubleshoot a few HP DL360 servers recently during a vSphere upgrade.
They refused to upgrade to vSphere ESXi 6.5 with a conflicting_vibs_error
Symptoms:

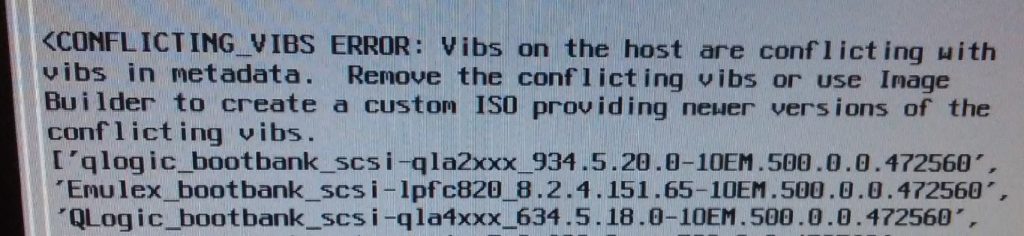

After selecting “Upgrade ESXi and preserve the existing datastore”, the system scan presented the following error:
<CONFLICTING_VIBS ERROR: Vibs on the host are conflicting with vibs in metadata. Remove the conflicting vibs or use Image Builder to create a custom ISO providing newer versions of the conflicting vibs.
[‘qlogic_bookbank_scsi-qla2xxx_……..’
‘Emulex_bootbank_scsi-lpfc820_……..’
‘QLogic_bootbank_scsi-qla4xxx_……..’
‘VMware_bootbank_net-nx-nic_……..’
‘Intel_bootbank_net-ixgbe_……..’
‘Brocade_bootbank_scsi-bfa_……..’
At that point, I researched and found that this error is because the server was originally installed with a custom image from HP. Good news though, HP and VMWare have a new custom vSphere ESXi 6.5 image available for a host of HP servers, including the DL360p G8.
Note: This image works on the following models per the documentation… HPE Synergy 480 Gen 9, Synergy 620 Gen 9, Synergy 660 Gen 9, Synergy 680 Gen 9 | Moonshot m510, Moonshot m710x | Proliant Microserver Gen8 | BL460c Gen8, BL460c Gen9, BL465c Gen8, BL660c Gen8, BL660c Gen9 | DL20 Gen9, DL60 Gen9, DL80 Gen9, DL120 Gen9, DL160 Gen8, DL160 Gen9, DL180 Gen9, DL320e Gen8 v2, DL260 Gen9, DL360p Gen8, DL380 Gen9, DL380p Gen8, DL385p Gen8, DL560 Gen8, DL560 Gen9, DL580 Gen8, DL580 Gen9 | ML30 Gen9, ML350 Gen9, ML150 Gen9, ML110 Gen9 |
Also found that the iLO vib is a problem in that image (causes purple Screen of Death) – make sure you download the latest iLO vib and install it after upgrade.
Attempted again with the new custom image, SAME ERROR! But at this point, I knew that I could download any of the vibs after upgrading, so I removed them from the server using these steps:
Identify the vib short name by reviewing the error message. The text where the hyphens start is the vib short name (example in bold). ‘qlogic_bootbank_scsi-qla2xxx-934.5.20.0-10EM.500.0.0.472560′
Console into the ESXi server
Run command esxcli software vib remove -n <vibShortName>
Repeat for each offending vib
Attempt upgrade again (this time it should work)
After upgrade, verify that your hardware is working, all NICs are good, etc.
Make sure to install the iLO vib by copying it to the server’s /tmp/ directory (recommend using WinSCP for this), then run command esxcli software vib install -v /tmp/ilo_vibname.vib
Reboot the server to finish activating the iLO vib.
Hope this works for you as well as it worked for me. Good luck folks!
