Symptom: You are using ONTAP 9x (your Netapp is fairly new, within the last 4-5 years. These instructions probably don’t apply to old Netapp devices)
Symptom: When you look at the diagnostic logs on your Netapp, you get a warning that the certificates are expiring or expired:
Event: mgmtgwd.certificate.expiring: A digital certificate with Fully Qualified Domain Name (FQDN) ExampleNetappServer1, Serial Number 569848B0A5092, Certificate Authority ‘ExampleNetappServer1’ and type server for Vserver ExampleNetappServer1 will expire in the next 29 day(s).
Message Name: mgmtgwd.certificate.expiring
Description: This message occurs when a digital certificate for a Vserver is about to expire. Client-server communication will not be secure if the certificate expires.
Action: Install a new digital certificate on the system using the ‘security certificate create’ or ‘security certificate install’ command.
Symptom: When you try to reach the website for your Netapp OnTAP, it won’t connect at all.
See the image above for what this looks like.
Symptom: You tried to create new certificates using security certificate create and now the website is broken.
Whoops. Never fear, keep reading, this article will help you.
DIFFERENT ISSUE — Third Party CAs are expiring
Just recently (June-July 2019), ONTAP users are getting errors that several certificates of type “server-ca” are expiring. These are NOT the certificates you use for your Netapp website and the fix steps in this article do not apply to them.
When prompted, type your administrator username and password. admin is the default username and netapp!123 is the default password.
Disclaimer: I’m just someone who admins Netapp SAN for my job. You should review the official Netapp articles on this topic and use common sense before making changes. If you aren’t sure about anything, put in a case with Netapp to get help.
Here are the commands you will run to see the current status of your certificates:
security certificate show
ssl show
Feel free to run these whenever needed, to see your status.
Run both commands now and screenshot or copy the results so you can reference them later.
Here is an example of a Netapp that has expired certificates for the cluster and the SVM:
Here is an example of a Netapp that has broken website ssl certificate:
.
Did you already delete your certificates and don’t know the names of your cluster and SVM?
Assuming you are connecting to your cluster, you should see the cluster name at the beginning of your command prompt.
If you press TAB while writing a command, Netapp will provide you possible answers. This can help you retrieve your Vserver list.
Type security certificate show -vserver [TAB]
Your command prompt will show you the possible answers. One should be your cluster, one should be your SVM(s).
Perform these steps to get rid of expired certificates, install new, and enable.
1. Delete old certificates:
Identify your variables:
-vserver = vserver name from the “security certificate show” command, such as ExampleNetappCluster1
-common-name = common name from the “security certificate show” command, such as ExampleNetappCluster1
-serial = serial number from the “security certificate show” command, such as 448293BA028
-type = type from the “security certificate show” command. Self-generated certificates are type server.
Run command for your cluster certificate: security certificate delete -vserver ExampleNetappCluster1 -serial ########## -type server -common-name ExampleNetappCluster1
When prompted, type Y to delete.
Run the command again for each SVM certificate: security certificate delete -vserver ExampleNetappSVM1 -serial ########## -type server -common-name ExampleNetappSVM1
When prompted, type Y to delete.
2. Create new self-signed certificates:
Run command for your new cluster certificate: security certificate create -vserver ExampleNetappCluster1 -common-name ExampleNetappCluster1 -type server -expire-days 999
You can change the expire-days per your security policy. The default is 365.
Run command for each new SVM certificate: security certificate create -vserver ExampleNetappSVM1 -common-name ExampleNetappSVM1 -type server -expire-days 999
3. Enable SSL with the new certificates:
Run command for your new cluster certificate: ssl modify -vserver ExampleNetappCluster1 -server-enabled true
Run command for each new SVM certificate: ssl modify -vserver ExampleNetappSVM1 -server-enabled true
4. At this point, your website should be back up!
Please leave comments if this worked for you, or tips if it didn’t.
If you need further reference, I found these Netapp articles helpful.
Thanks for reading this article! I hope it helps you! If you have tips or feedback, please comment or send me an email so that others can benefit.
I am a consultant in the Maryland/DC area in the USA. My specialties are Windows migrations (to 2016 and to Office 365 / Azure), VMware migrations, Netapp and SAN, and high availability / disaster recovery planning. If you would like help with your complex project, or would like a architectural review to improve your availability, please reach out! More information and contact can be found on the About page. – Amira Armond
Problem: HP’s new website support.hpe.com doesn’t allow you to download the file with your account.
Problem: When you try to register, you can’t get the HP website to accept your support agreement, warranty, support account reference, or service tag.
I support many businesses that use Hewlett Packard Enterprise servers such as ML360s, DL380s, StoreServ, and blades.
Invariably, my biggest issue with these servers is getting the support that was paid for, especially if the servers are a few years old and the original IT person has moved on. I understand needing to prove your warranty for a hardware replacement, but preventing the download of firmware updates and security fixes is ridiculous.
Solution:
Make a scan of the invoice or packing list that shows your purchase (or ideally the support agreement) and then call HPE. They will probably ask you to send them a copy of your document via email.
Be kind to your future self and co-workers and get your contracts and warranties sorted out as soon as possible, before you need them.
When you buy direct from HPE, the support agreements will be registered to your company and to your HPE account. You should be good for support with this, but remember to have your co-workers set up HPE accounts and assign the support agreement to them too.
When you buy from a reseller (this is more common), they will have included the service agreement / warranties you purchased, but they probably aren’t linked to your account or your company yet. Get copies of the packing list, invoice, and/or receipt that came with the hardware. The reseller will often send the purchaser an email with the support IDs too. If you can’t find your SAID, SAR, etc, ask your manager or accountant (whoever does the purchasing) to search their emails. Then… (broken record)… call HP.
Explanation of terms:
Link Support Agreements page:
Service Agreement ID (SAID): This is a 12-digit numeric ID relating to your company. You probably don’t have this ID (most resellers don’t provide it). Call HP to get it.
Support Account Reference (SAR) or System Handle: This is an 18-digit alphanumeric ID that includes the service tag of your server. You probably don’t have this ID. Call HP to get it.
Link Warranties page:
Service Tag: The service tag of your server.
Product ID: The product ID of your server (check the box or packing slip). Unfortunately, when I have tried registering servers using this, it often still doesn’t work. Call HP.
Many websites will say that vCenter 6x requires DNS lookup, but these steps and screenshots prove that you can install a new vCenter 6.7 with only an IP address and no DNS.
Start vCenter install from .iso file using Windows 10
vCenter install stage 1
8. Configure options for “set up appliance VM” — this gives the name for the VM on your host (and will affect naming of the datastore folders). Set the root password for the vCenter appliance here. Select deployment size – for most situations, the default of Tiny is fine unless you have more than 10 hosts. Select datastore – pick the datastore to create the VM into.
vCenter installation stage 2
Now to connect to your new vCenter VCSA without DNS..
Selfish plug time (sorry!)
Thanks for reading this article! I hope it helps you! If you have tips or feedback, please comment or send me an email so that others can benefit. I am a consultant in the Maryland/DC area in the USA. My specialties are Windows migrations (to 2016 and to Office 365 / Azure), VMware migrations, Netapp and SAN, and high availability / disaster recovery planning. If you would like help with your complex project, or would like a architectural review to improve your availability, please reach out! More information and contact can be found on the About page. – Amira Armond
Problem: Your Kindle Fire or Android Kindle App displayed a message about the new “continuous scrolling” (finger drag) feature and you turned it on.
Now you can’t flip pages anymore and there is no option to turn it off!!
Solution: Follow the below steps to get your Kindle back to page swipe mode!
Did you want to turn ON continuous scrolling? These steps also work!
These instructions will fix vertical scroll on android phone, kindle fire, and most other Kindle reader app varieties.
How to fix:
If you are at the main Kindle screen, open the books menu, then open the Kindle book that is in continuous scroll mode.
2. Tap in the middle of your book text with one finger.
3. The book options menu will display at the top.
4. Select the Aa button.
5. The option for Continuous Scrolling is at the bottom. Tap the slider button to turn it off.
At this point you should be back to page flipping mode.
Continuous scroll turns back on??
Does continuous scrolling turn back on automatically? ? Several people have commented that their kindle is turning scrolling on automatically. For example, they turn it off in the morning, come back to their kindle in the afternoon, and continuous scroll is turned back on.
We’ve had one comment about a possible fix for this, from Diane Lenard: “Mine did the same. After chatting with Amazon, I found the only solution was to delete Kindle [app], restart my phone (I have Kindle on my phone) then reload Kindle [app]. It worked fine after that. I cut it off once and it stayed off! Yea!”
If this works for you (or doesn’t), please comment!
Selfish plug time (sorry!)
Thanks for reading this article! I hope it helps you! If you have tips or feedback, please comment so that others can benefit.
Most of my articles are about high tech subjects, but I was inspired to write this one when my Kindle recommended scroll mode and I couldn’t turn it off (nooooo!). I’m amazed that this article has helped more than 15,000 people since I posted it. Well worth that hour of work. I am a consultant in the Maryland/DC area in the USA. My specialties are Windows migrations (to 2016 and to Office 365 / Azure), VMware migrations, Netapp and SAN, and high availability / disaster recovery planning. If your business would like help with your complex project, or would like a architectural review to improve your availability, please reach out! More information and contact can be found on the About page. – Amira Armond
Problem: You want to export 17hats data to Excel or .csv format.
17hats only allows exports to Quickbooks file format .iff
BUT you need it in Excel .xls .xlsx .tab or .csv format because you don’t use Quickbooks.
Solution: How to open .iff files in Excel
1. Use 17hats to export your bookeeping tab (expenses and income) to a Quickbooks file. This will automatically download and create a file named “transactions.iff” in your Downloads folder.
2. Open your Microsoft Excel program. You can do this by opening any existing excel file, or by going to Start > Programs > Microsoft Excel
3. Click the File menu.
4. Click Open
5. Browse to your transactions.iff file (probably in Downloads) and open it.
.
6. The Excel conversion wizard will open to Step 1 of 3
7. Accept the defaults (delimited , start import at row 1, no headers), and click Next.
8. On Step 2, Accept the defaults (tab delimiter is selected) and click Next.
9. On Step 3, accept the defaults (General data format is selected) and click Finish.

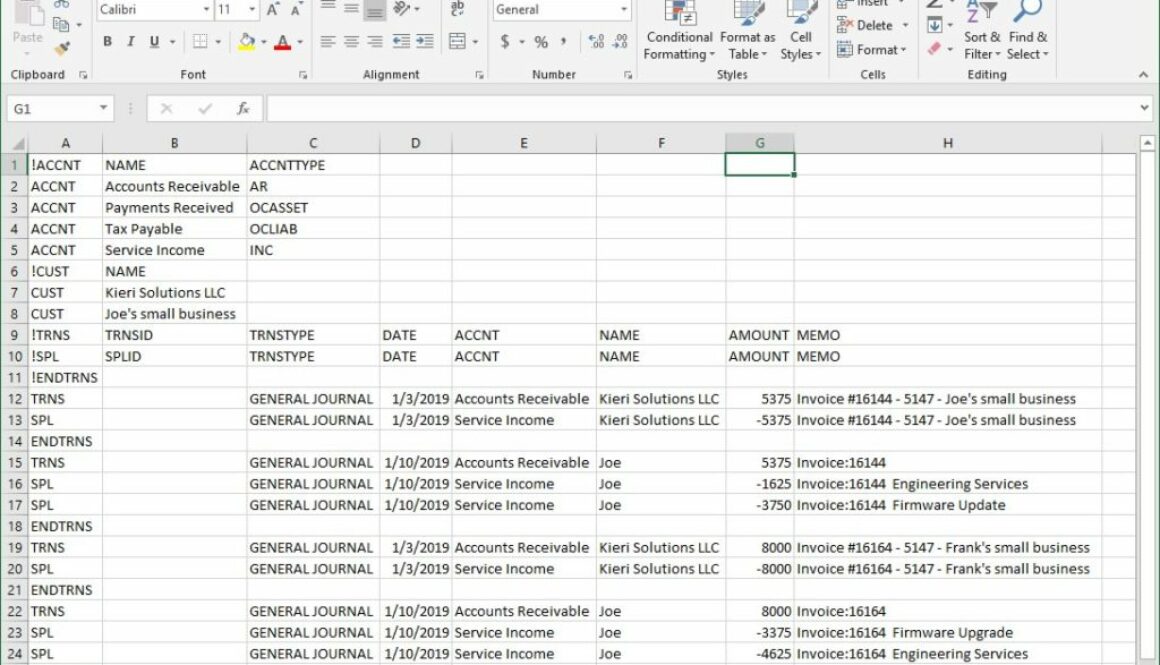

10. The workbook will open.
Before you do more work, I recommend saving it as an Excel file.
11. Click the File menu
12. Click Save As
If desired, browse to the file location you want to save to.
If desired, change the name of the file.
13. Change the TYPE of file to “Excel Workbook (*.xlsx)
Windows Server 2016 , Windows Server 2019 , or Windows 10
Trying to change the URL shortcut path on a start menu item.
Error: “Problem with Shortcut” “Cannot apply changes to this Internet Shortcut”
The file is NOT read only
You are logged on with an admin account
For example, you want to change the shortcut for Exchange Administrative Center. This points at localhost by default, but should be changed to match the server name once certificates are installed. When you try to edit the shortcut, it won’t save the changes.
How to fix:
Make sure you are logged on with administrator privileges.
Copy the shortcut file to your desktop.
Edit the shortcut on your desktop (right-click, Properties, modify URL path, OK).
Copy the shortcut file back to the correct start menu folder.
When asked, select to “replace the file in the destination”
Click “Continue” to provide administrator permission to copy to this folder.
You should be fixed now. Cheers!
What is the cause of this problem?
Most people think the problem is a lack of permissions. Even if you are logged on as an admin user, your Windows Explorer is running with ‘user’ privileges. However, on Server 2016, trying to run Windows Explorer with elevated privileges did not work.
If you look at the start menu folders, they are “read only”. You can un-set this and the folder will just go back to read-only.
I’m pretty sure that Microsoft made this difficult because users could mess with each other by changing program shortcuts. While working with the military, I saw a prank inside IT departments using this. They changed the shortcut for Internet Explorer into…
